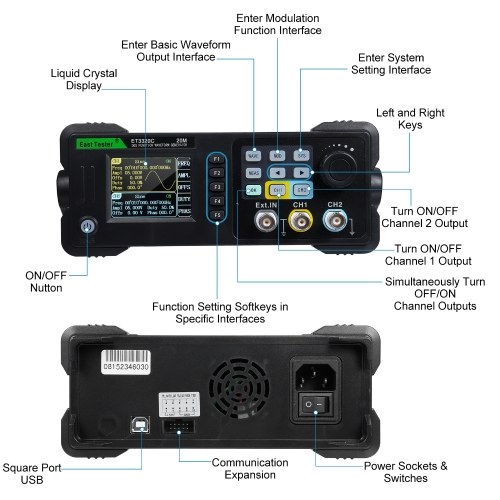

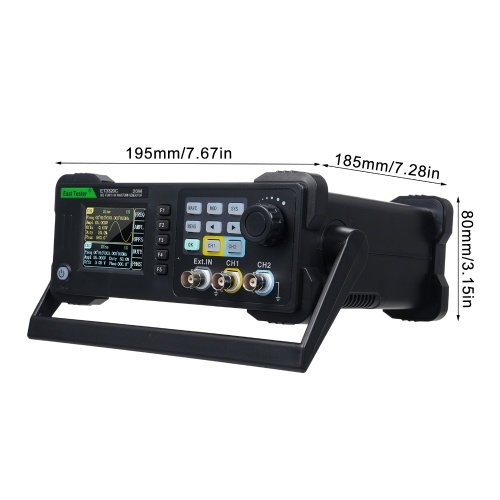

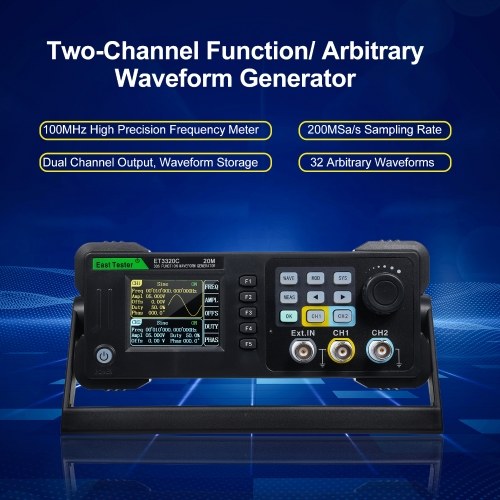

East Tester Two-Channel Function/ Arbitrary Waveform Generator 20MHz Frequency Meter ET3320C Pulse Signal Source 200MSa/s Sampling Rate

Опис

Features:

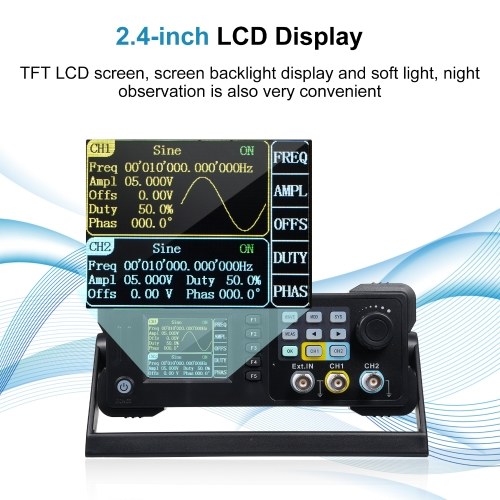

1. 2.4-inch 320X240 TFT LCD with clear graphic interface.
2. Chinese / English menu available.
3. Both channels are independent of each other and have phase synchronization function.
4. Sampling rate: 200MSa/S, vertical resolution: 13 bit and storage depth: 8k.
5. 5 basic waveforms and 32 arbitrary waveforms in-built.
6. waveform storage; Support internal storage of 50 groups of user-defined edited waveforms;
7. Pulse wave output set in edge time.
8. Internal AM, FM, PM modulation function (External AM, FM, PM modulation is optional).
9. Internal/external ASK, FSK, PSK modulation function;
10. Dual channel output, maximum output frequency 60M;
11. Output of linear/logarithmic sweep and burst (pulse train) waveforms;
12. With 100MHz high precision frequency meter and 32 bit counter;
13. Standard USB Device interface; Optional external analog modulation interface;
14. Equipped with multifunctional arbitrary waveform editing software.
