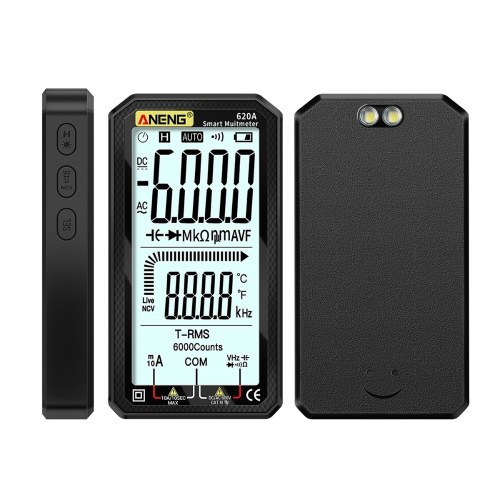

ANENG 4.7-Inch LCD Display AC/DC Digital Multimeter Ultraportable True-RMS Multimeter Auto-Ranging Multi Tester with Amp Volt Ohm Capacitance Continuity Temperature Frequency Diode Tests NCV Tester for Electronics Automotive HVAC Tech

Опис

features palm-size, 4.77-inch big LCD display, auto-ranging, true-RMS, overload protection, shockproof silicone cover, and audible NCV alarm. It is ultraportable for the maintenance of cars, electronics, home appliances, HVAC and more.

Features:
MULTIMETER: Measures AC/DC current, AC/DC voltage, non-contact AC voltage (NCV) detection, live/zero line detection, resistance, diode, capacitance, temperature, and frequency.
LOUD BEEP: NCV sensor and live/zero line detector send out audible and visual alarm once AC voltage detected.

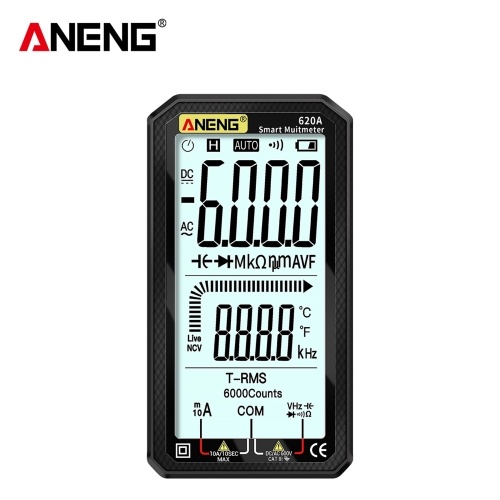

EASY TO READ: 4.77-inch LCD display with backlight enables you to view readings clearly even in the dim light.
EASY TO USE: Offers you with auto-ranging and manual ranging mode for extremely simple using experience.

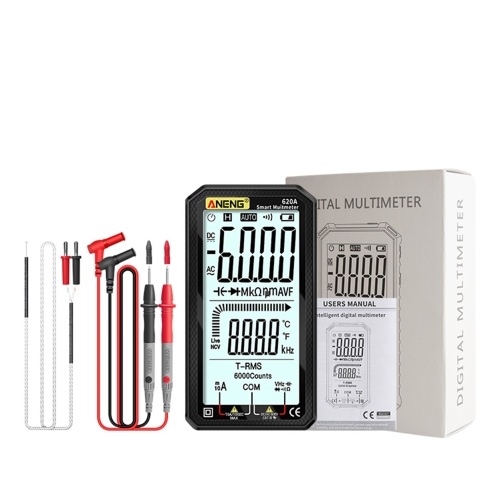

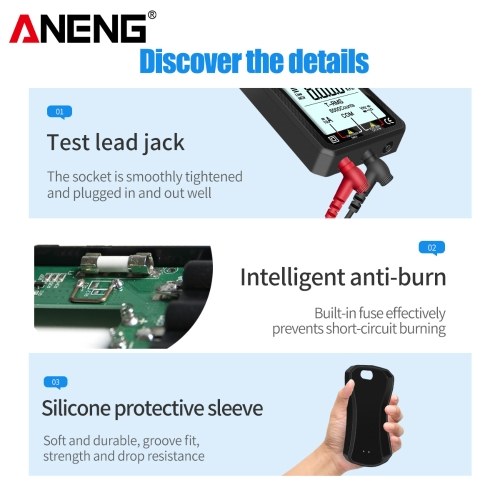

SAFE AND RELIABLE: Provided with overload protection and 1000V, 10A test leads, safe and reliable to use.

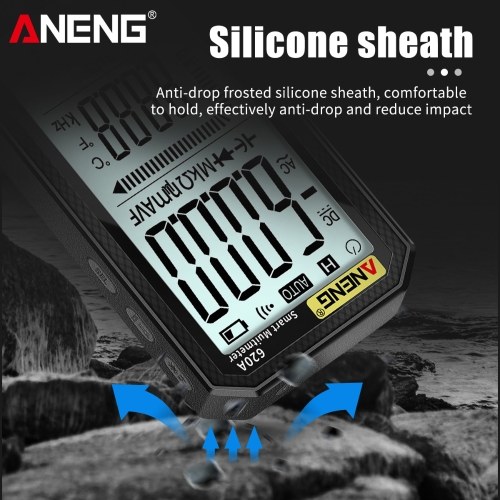

LONG-LASTING: Shockproof and non-slip silicone sheath effectively protects the unit from damage.
ULTRA PORTABLE: Measures in 5.6 by 3 by 0.9 inches, the palm-sized multimeter is small enough to be held in hand or put into pocket, easy to carry around.
AUTO-OFF: Auto power off within 15 minutes if there is no operation, helps conserve the battery.

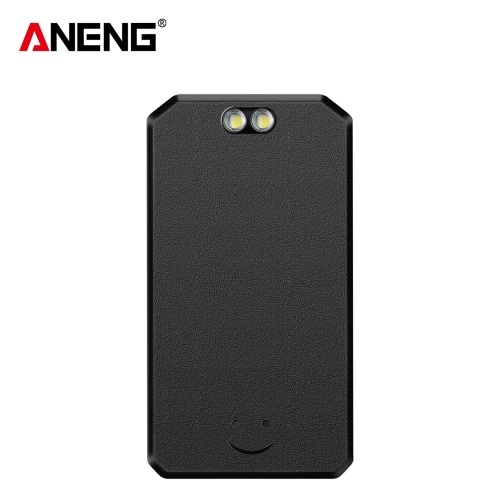

MORE FUNCTIONS: Features data hold, flashlight, Celsius/Fahrenheit degree, and more.

Note:
*MUST read the user manual carefully before use for safety.
*Battery not included.

Parameters:

AC Current

Range
Resolution
Accuracy

6000mA
1mA
(1.0% reading + 8 digits)

10A
0.01A

DC Current

6000mA
1mA
(1.0% reading + 5 digits)

10A
0.01A

DC Voltage

6V
0.001V
(0.5% reading + 3 digits)

60V
0.01V

600V
0.1V

AC Voltage

6V
0.001V
(0.8% reading + 5 digits)C

60V
0.01V

600V
0.1V

Continuity (overload protection: 600V DC/AC, True-RMS)

-
0.1Ω
If resistance of the line being measured is less than 50Ω, built-in buzzer will make continuous alarming sounds.

Resistance

600Ω
0.1Ω
(0.8% reading + 3 digits)

6kΩ
0.001kΩ

60kΩ
0.01kΩ

600kΩ
0.1kΩ

6MΩ
0.001MΩ

60MΩ
0.01MΩ

Diode Test
(Testing Environment
Testing current: about 1mA;
Open circuit voltage: about 2.8V
The display shows an approximation of forward voltage drop of diode.)

-
1V
0.001V

Capacitance

6nF
0.001nF
(10% reading + 40 digits)

600nF
0.1nF
(2.5% reading + 20 digits)

6μF
0.001μF

60μF
0.01μF

600μF
0.1μF

6mF
1μF

60mF
0.01mF

Temperature

-40 ~ 1000 ℃
1℃
(1% reading + 3℃)

-40 ~ 1832℉
1℉
(1% reading + 3℉)

Frequency (via gear A)
Input signal range: 1/4 Full-scale value, 2A AC Current(True-RMS)

100.0Hz
0.1Hz
(1.0% reading + 5 digits)

1000Hz
1Hz

Frequency (via gear V)
Input signal range: 0.8V AC Voltage(True-RMS)

100.0Hz
0.1Hz
(1.0% reading + 5 digits)

1000Hz
1Hz
